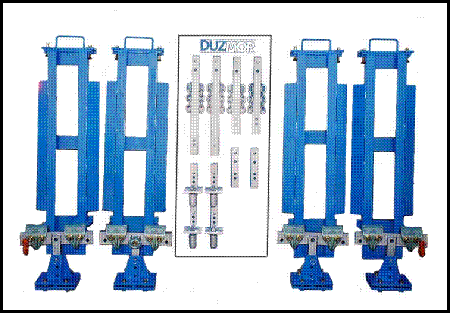

PART #30-4011-3
CAGE EXTENDED DRIVE-OVER UNIBODY, FULL FRAME
AND TRUCK ANCHOR PACKAGE
This package comes as standard equipment on the Magnum 360 Longer/Wider Cage.
Anchor down unibodies, full frames and trucks.
This package can be added to any cage model to convert your machine to a more user friendly system with a lot more options. Remove the unibody T-bars and install the truck bars to anchor down a truck or full frame. Anchor bases will also accept the Honda brackets, Mercedes/BMW anchors and the New Winch-Tite truck anchor package shown below.
PART #20-914
HONDA ADAPTERS
Install the Honda brackets in the anchor bases and install the frame clamps to anchor down vertical pinch-weld cars such as Honda (see below). Fits all Proliners, Titans and Duz Mor cage machines with a 30-4011-3 package.

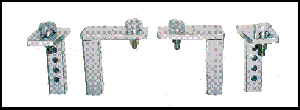

PART #4010/10
MECEDES/BMW ANCHORS
(Without Side Jack Holes)
Install in the anchor bases to anchor Mercedes/BMW without jack holes in the rocker panel. Fits all Proliners, Titans and Magnum Cages with 30-4011-3 package.
 |

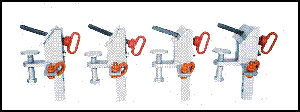

PART #4018
MECEDES/BMW ANCHORS
Install in the anchor bases to anchor down most Mecedes and BMW models. They feature angle adjustable pins and lower body support bracket. Fits all Proliners, Titans and Duz Mor cage machines with 30-4011-3 package.
|
New!
Introducing the
Winch-Tite
Truck anchor system!
PART #4080
WINCH –TITE TRUCK ANCHOR PACKAGE

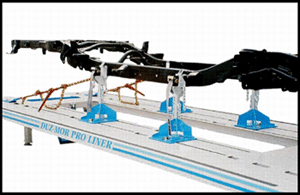

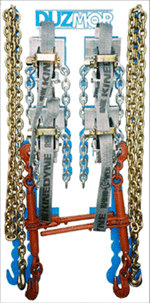

This is a real time saver. Anchor almost any truck in minutes. Leave one side loose, pull a diamond , tighten the loose side and continue to repair all other frame damage. Anchors back to bed for maximum holding power. Incorporates 22,000 lbs staps so that you can anchor a truck without removing most fuel tanks or wiring. Fits into extremely tight spots and is very universal. Adjusts up and down to anchor the truck at just the right height for your measuring system. . The most universal truck anchoring package on the market today! Fits all Duz Mor Proliners, Titans and all Duz Mor Cage machines with 30-4011-3 package. Also made to fit our competitors machines. Shown on left mounted on tool board and below mounted on a Duz Mor Proliner
Individual Winch–Tite Saddle shown mounted to a truck frame. The top portion is the actual Winch-Tite monted on a standard Duz Mor Proliner/ Titan Anchor Base.

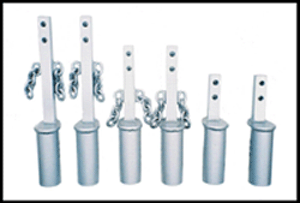

PART #4080-6
WINCH-TITE CHIEF ADAPTER TUBES
Shown on the left Winch-Tite Chief Adapter Tubes are mounted to Chief machine in the standard Chief anchor bases. A quick and easy solution for anchoring down trucks.6 Winch-Tite Chief adapter tubes.
|
|---|
